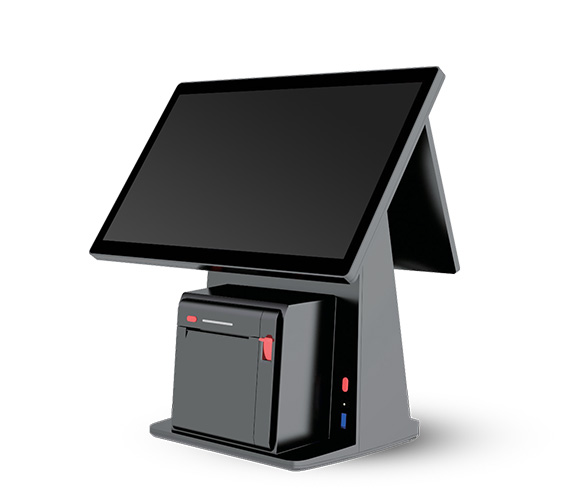

DEM140W
14inch Windows POS with 80mm Printer
CHARACTERISTICS
1. Field upgradeable
Quickly upgradeable RAM and SSD to increase system specifications
2. Optional Wi-Fi® antenna
No need for cabling - easily upgrade to high speed wireless access
3. Demester POS with 5 USB-C for proprietary peripherals
Consolidate peripheral integrations for attended and unattended applications
4. Multiple CPU options
Celeron® and intel i3 /i5 /i7 configurations: keep consistent look and feel across your business environment
5. Multiple operating systems
Compatible in both Windows 10 IoT, Windows 10 PRO , and Linux
6. Cable management
Easily hide cables in the base for a clean installation
7. Inbuilt 80MM thermal Printer
Commands support: ESC/POS /OPOS Driver , interface USB/RS232/ bluetooth. Support thermal receipt & thermal Label.
Load paper size 80*70mm ,
Printing speed: 200mm/sec Cash drawer: (9-24V )
OPTIONAL ACCESSORIES
· Second display 10.1" IPS (1280*800)
· Second display 7" IPS (1024*600)
· 2D Barcode Scanner (inbuilt)
· NFC Card Reader
|
Model No.
|
DEM140W
|
|
Processor
|
Intel Celeron J4125 Quad-Core, Up to 2.70 GHz
Intel Celeron J6412 Quad-Core, Up to 2.60Ghz
Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th CPU
|
|
Memory
|
2GB, DDR3L or DDR4, up to 8GB/16GB
|
|
Storage
|
mSata or M.2 64GB standard, up to 512GB
|
|
OS
|
Windows 10/11
|
|
DISPLAY
|
|
Type
|
14 inch IPS (BOE brand )
|
|
Resolution
|
1920*1080
|
|
Aspect Ratio
|
16:9
|
|
Brightness
|
250 nits
|
|
Touchscreen
|
True flat capacitive touch
|
|
PRINTER
|
|
Printer Mechanism
|
80mm receipt thermal printer with auto cutter
|
|
Commands
|
ESC/POS,OPOS driver
|
|
Paper size
|
80*70mm
|
|
INTERFACE
|
|
USB
|
3*USB2.0, 2*USB3.0
|
|
LAN
|
1*RJ45 1000M
|
|
Serial
|
1*COM (RS232)
|
|
Display
|
1*VGA
|
|
Audio
|
1*Audio
|
|
Cash Drawer
|
1*RJ11
|
|
Power DC-IN
|
Input AC 100~240V/50~60hz, Output DC 12V/7A
|
|
PHYSICAL&ENVIRONMENTAL
|
|
Operating Temperature
|
Operating 0°~50°
|
|
Operating Temperature
|
Storage-20°~60°
|
|
Dimensions
|
(L*W*H) 335mm x 238mm x 339mm
|
|
Net Weight
|
5.9kg
|
|
Color
|
Black
|
|
OPTIONS & PERIPHERALS
|
|

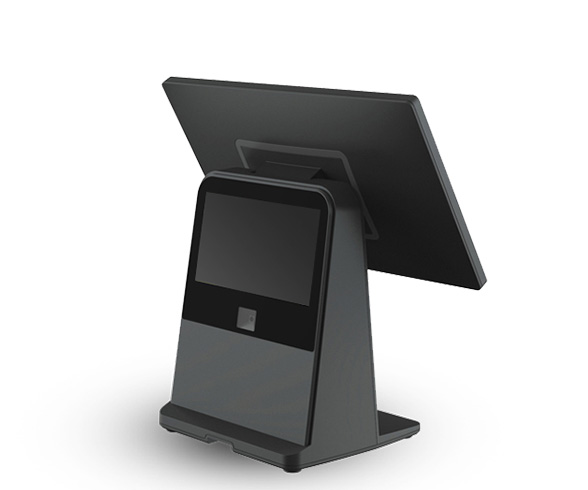

2nd Display
|
7/10.1 inch (Touch on 2nd display optional)
|
|
Scanner
|
Embedded scanner option, support 1D, 2D
|
|
Card Reader
|
NFC optional
|
|
4G Module
|
Support 4G TD-LTE, FDD-LTE (optional)
|
|
Wifi
|
2.4G or 2.4G+5G (optional)
|
|
Bluetooth
|
Bluetooth 4.2 protocol/BLE (optional)
|
|
Speaker
|
1*3W speaker (optional)
|
