| Windows version(With CPU fan) | |
| SYSTEM | |
| Processor | Intel® Celeron® J1900 Quad Core Processor |
| Memory | 2GB Standard, DDR3, (up to 8GB), Optional |
| Storage | Msata SSD 32GB Standard, 64GB, 128GB, 256GB, Optional |
| OS | Windows 7, Windows8.1, Windows 10, POS Ready7 |
| DISPLAY | |

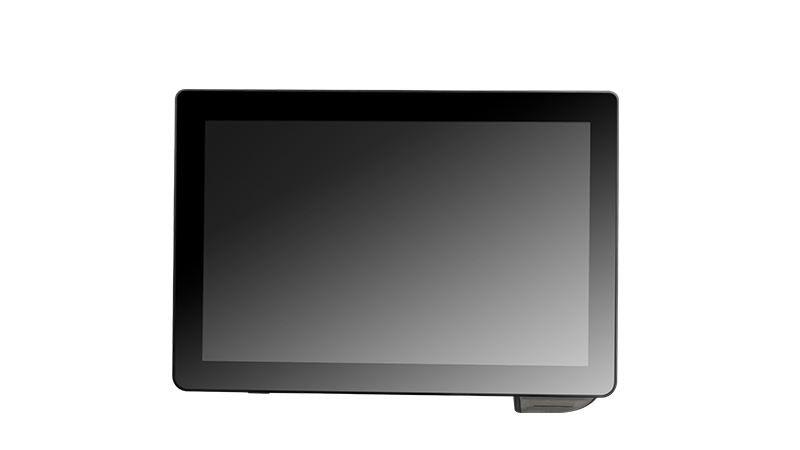

| Type | 10.1'' IPS Display |
| Resolution | 1280*800 |
| Brightness | 320cd/m2 |
| Viewing Angle(CR≥10) | 160 Degree(H) |
| 160 Degree(V) | |
| Touchscreen | Projective Capacitive Touch Screen |

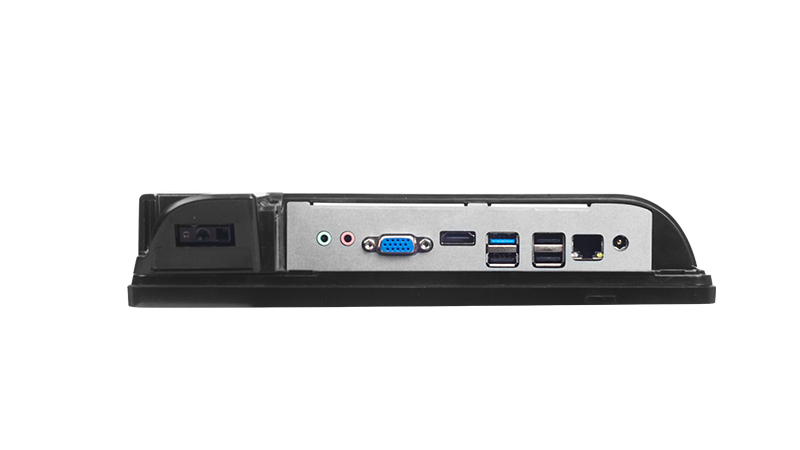

| INTERFACE | |
| USB | 3*USB2.0; 1* USB3.0 |
| Display | 1*VGA, 1*HDMI |
| LAN | 1*Gigabit Ehernet, RJ45 |
| Audio | 1*Line-out, 1*Mic-in |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| SCANNER | |
| Image Sensor | 640*480 CMOS |
| Illumination | White LED |
| Aiming | Red LED(625nm) |
| Data Capture | All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey |
| All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix | |
| Resolution | ≥3mil |
| Typical Depth of Field |
EAN-13 60mm-350mm (13mil) Code 39 40mm-150mm (5mil) PDF417 50mm-125mm (6.7mil) Data Matrix 45mm-120mm (10mil) QR Code 30mm-170mm (15mil) |
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew: ±60° |
| Min.Symbol Contrast | 25% |
| Field of View | Horizontal 42°, Vertical 31.5° |
| PHYSICAL&ENVIRONMENTAL | |
| Operating Temperature | Operating -20~70° |
| Storage Temperature | Storage -25°~75° |
| Dimensions(W×H×D) | 251 x 288 x 49(mm) |
| Packing Dimensions(W×H×D) | |
| Net Weight | 1.00KG |
| Packing Weight | |
| Color | Black |

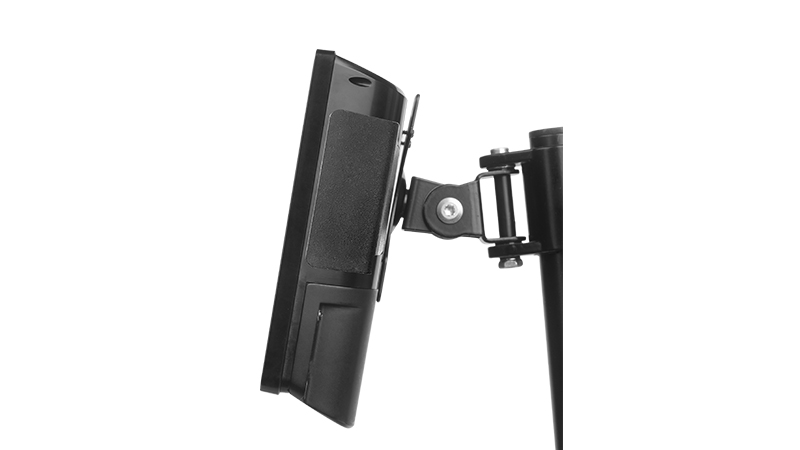

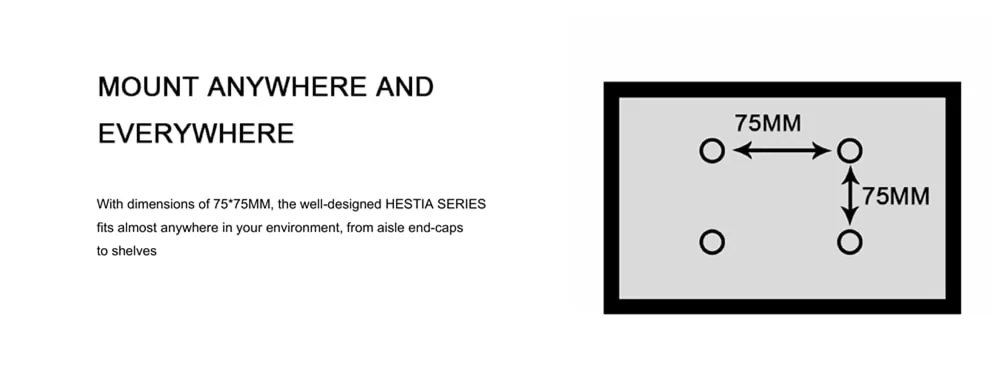

| VESA | 75*75mm |
| Built-in Functions | |
| WIFI | Mini PCIe for Wireless LAN(Option) |
| Bluetooth | Bluetooth 4.0(Option) |
If you need customization, please send an email to contact us!
