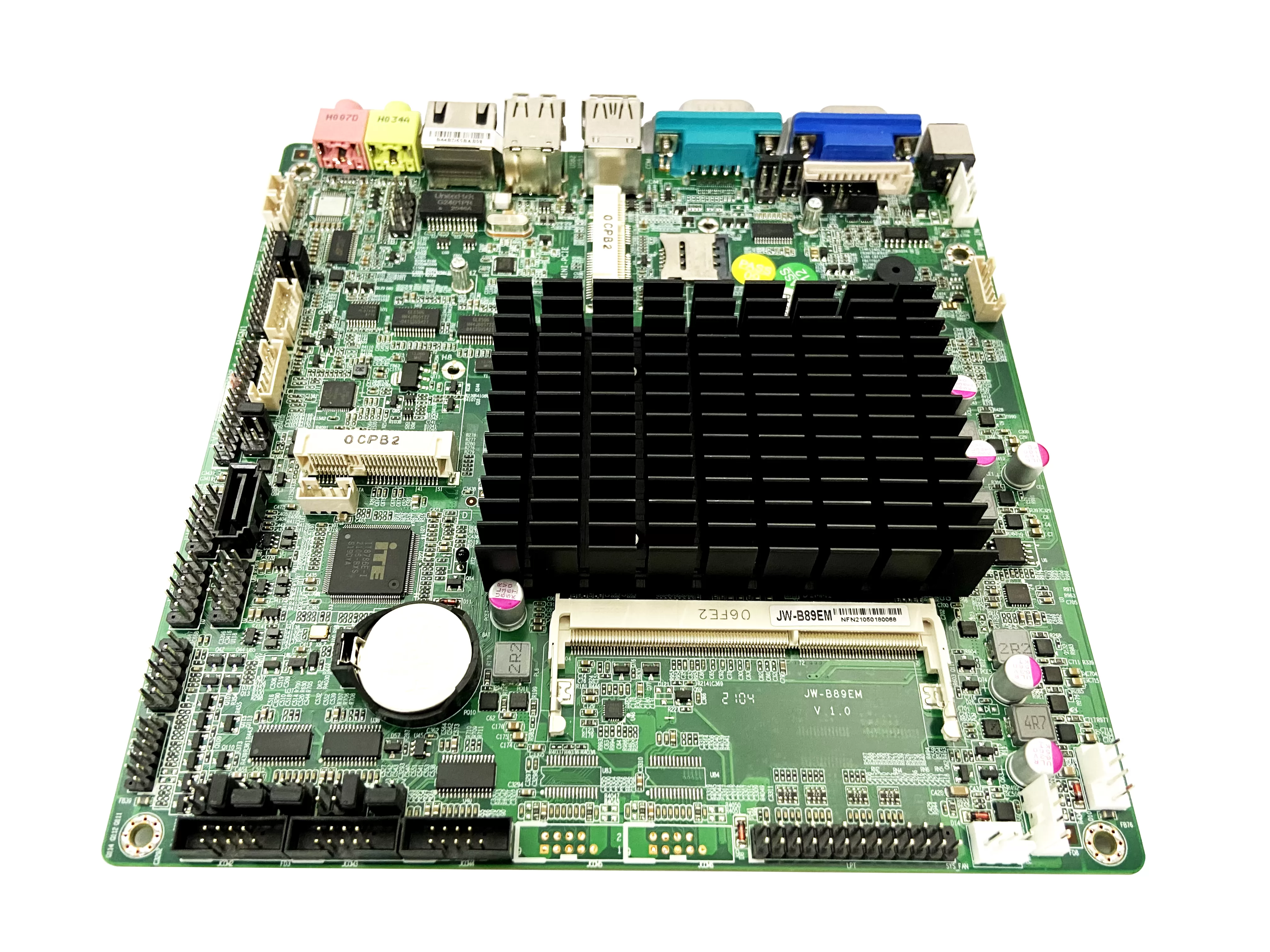

Jassway recently announced a new motherboard and processor combination meant for embedded systems for Point of Sale (POS) machines and digital signage. The JW-B89EM is the company's first motherboard to feature its chipset. Jassway has packed a lot into this new motherboard, and the specs suggest that it is a capable machine. The JW-B89EM packs a 2.42GHz CPU processor, and fanless. On the other hand, the JW-B89EM is powered by Intel Celeron J1900 core processor at 2.42GHz. The Windows 10 version can run in this motherboard.
l Intel Bay Trail Celeron J1900 CPU
l 6*COM, 9*USB, 1*GbE LAN
l Supports Dual display of VGA and 2*eDP
l 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G)
l Thin Mini-ITX, DC 12V Power Input
In addition, the Jassway JW-B89EM motherboard will happily accept power connections from either an AC or CD power supply and is compatible with the slim, low wattage, DC PSUs though no specific recommended wattage was stated.

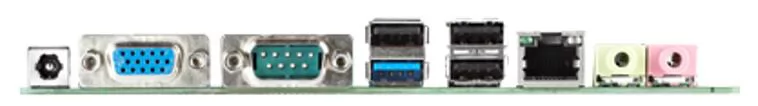

Rear IO on the motherboard is also fairly impressive considering the size. Jassway has packed in the following connectors.
|
I/O Interface |
|
|
Ethernet |
1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 |
|
Serial |
5*RS232, 1*RS232/TTL |
|
USB |
1*USB 3.0, 8*USB 2.0 |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifer |
|
PS/2 |
1*PS/2 Header (Keyboard & Mouse) |
|
Parallel |
1*LPT Header |
|
GPIO |
8*Programmable GPIO |
The Jassway JW-B89EM motherboard supports Windows 10, but it is primarily aimed at embedded markets, and as such is compatible with the Windows Embedded Standard 7, Windows XP Embedded, and POSReady 7 operating systems. Jassway intends for this system to be used to power digital signage, point of sale machines, ATMs, kiosks, embedded gaming platforms, and other digital media applications where low power flourishes.
