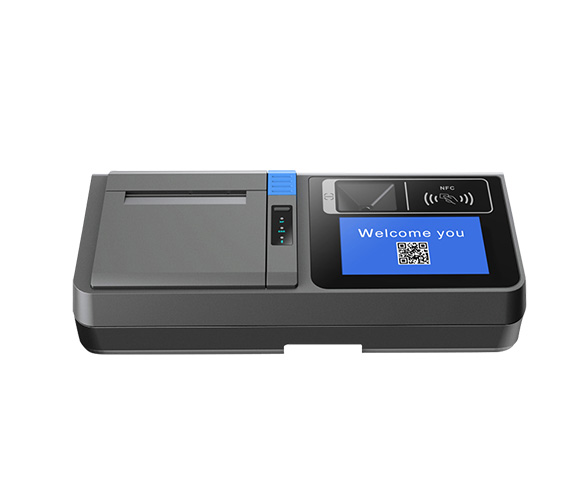

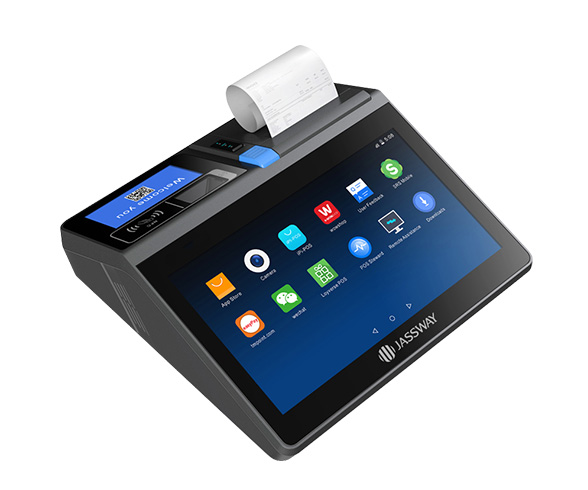

Android POS

OLP116A

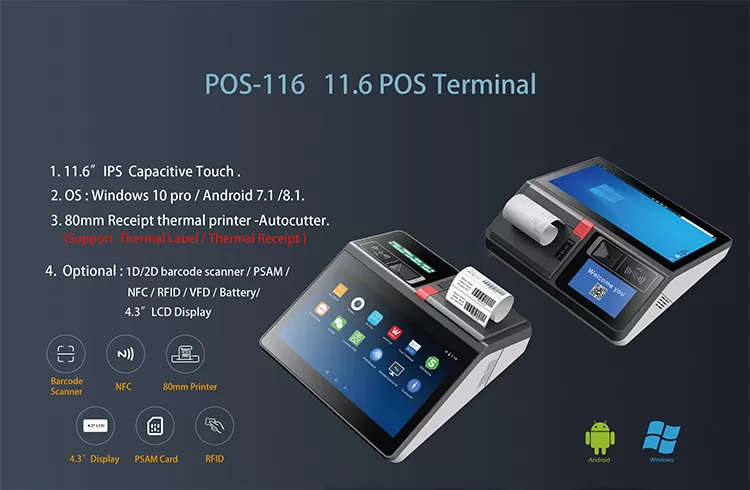

11.6 inch pos system with printer and scanning
Contact Us Now
Contact a Jassway Pos Expert Now !
About our industry and products,you may want to know more. We offer tailored solutions and are ready to provide up-to-date information and support.
Get to Know Us Now
Description
Reviews

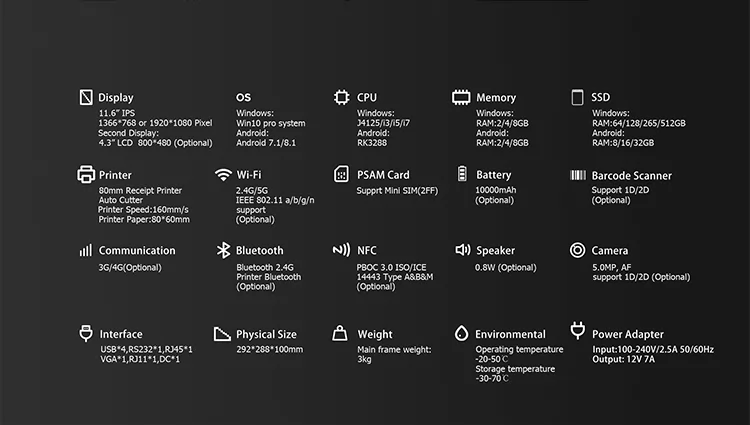

Product Specification

SYSTEM
Processor Rockchip RK3288, Quad-core Cortex-A17 up to 1.8GHz
Memory 2GB Standard, 4GB Option
Storage 16GB Standard, 32GB Option
OS Android 7.1 / 8.1
DISPLAY

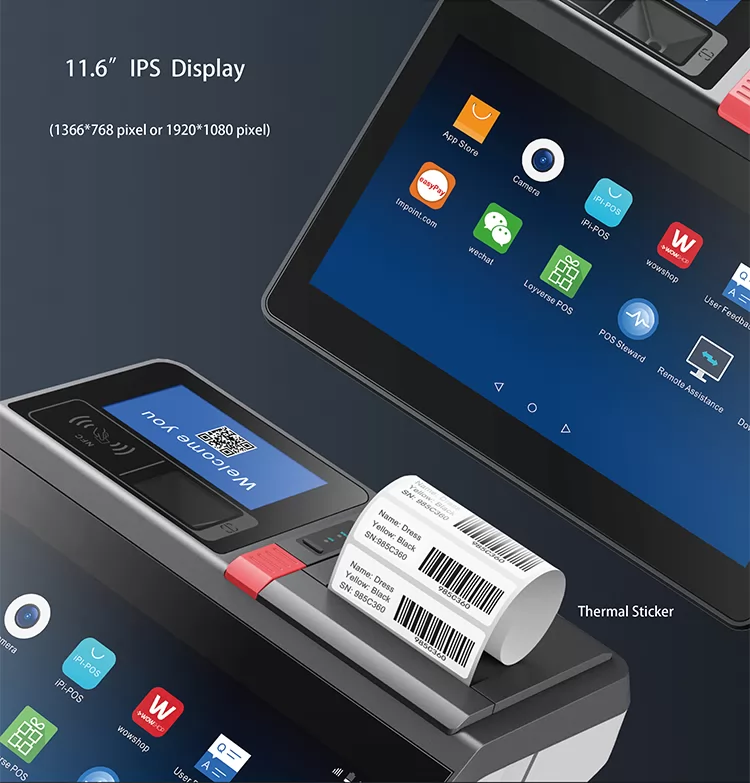

Type 11.6 inch HD Display
Resolution Standard 1366*768, 1920*1080 Option
Aspect Ratio 16:9
Brightness 250 nits
Touchscreen Projective Capacitive Touch Screen
PRINTER

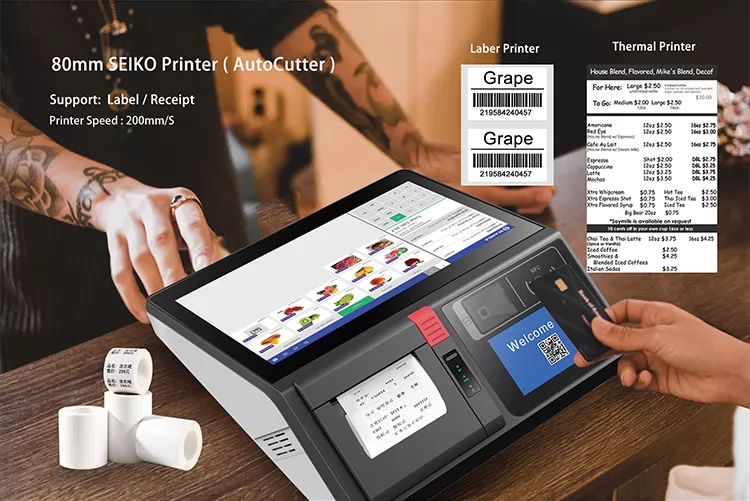

Printer Mechanism Seiko Thermal Printer Mechanism with Auto Cutter
Interfaces Standard USB Port, COM Port or Bluetooth Option
Printing Method Direct Thermal
Printing Speed 200mm/s
Paper Width 79.5 ± 0.5mm
Print Width 72mm
Paper Roll Diameter 60mm
INTERFACE
USB 5* USB
LAN 1*RJ45
VGA 2*VGA
Audio 1*Line Out, 1*Mic In
Serial 1*COM(RS232)
Cash Drawer 1*RJ11
Power DC-IN Input AC 100~240V/50~60hz, Output DC 12V/5A
PHYSICAL&ENVIRONMENTAL
Operating Temperature Operating 0~50°
Operating Temperature Storage-20°~60°
Cooling Fanless/With CPU Fan
Dimensions(W×H×D) 292x100x297(MM)
Packing Dimensions(W×H×D) 370x380x200(MM)
Net Weight 2.35KG
Packing Weight 5.20KG
Color Black
OPTIONS & PERIPHERALS
2nd Display 4.3 inch LCD Display Option (Resolution: 800*400)

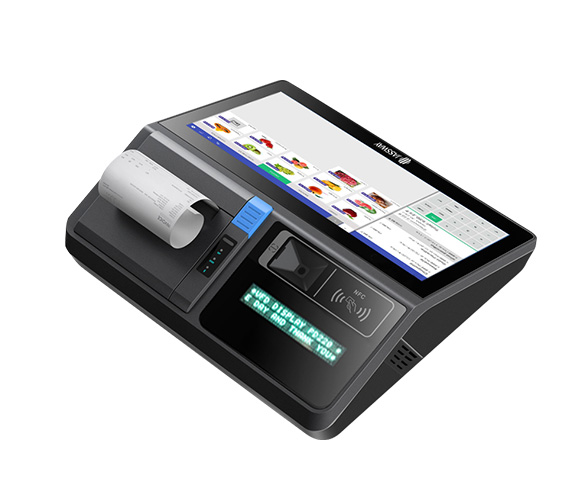

Customer Display VFD Customer Display Option, 20 Characters*2 Line

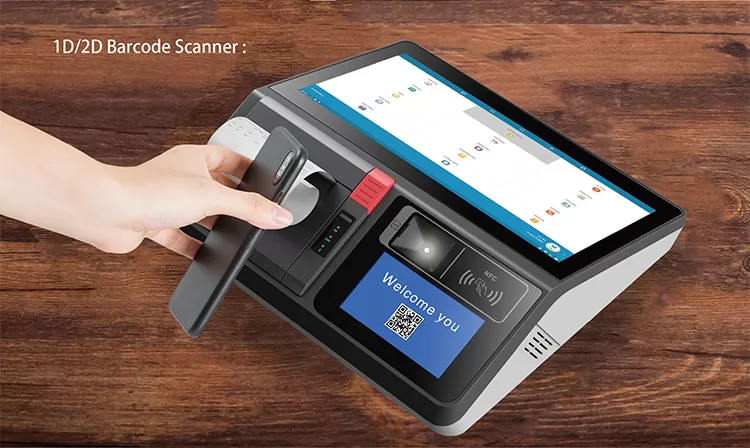

Scanner Embedded Scanner Option, Support 1D, 2D

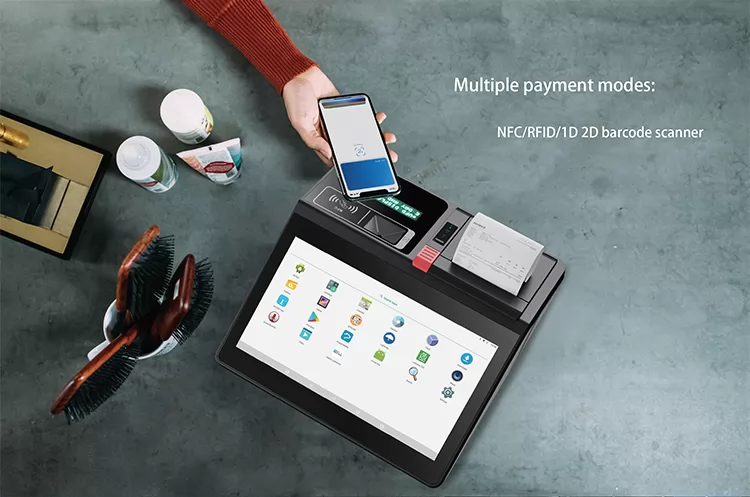

Card Reader NFC Option
Wifi IEEE 802.11 a/b/g/n/ac Option
Bluetooth Bluetooth 4.0 protocol Option
Speaker 1*0.8W Speaker Option
4G module Support 4G TD-LTE, FDD-LTE (factory option)
