Orion

17inch Windows Touch POS System

Description

Model No.	ORI170W
Processor	Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.60Ghz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CPU
Memory	2GB Standard, DDR3L or DDR4, up to 8GB/16GB/32GB
Storage	1mSata or M.2 64GB Standard, up to 512GB
OS	Windows 10/11
DISPLAY
Type	17 inch LED Backlight Display
Resolution	1280*1024
Aspect Ratio	5:4
Brightness	250 nits
Touchscreen	Projective Capacitive Touch Screen

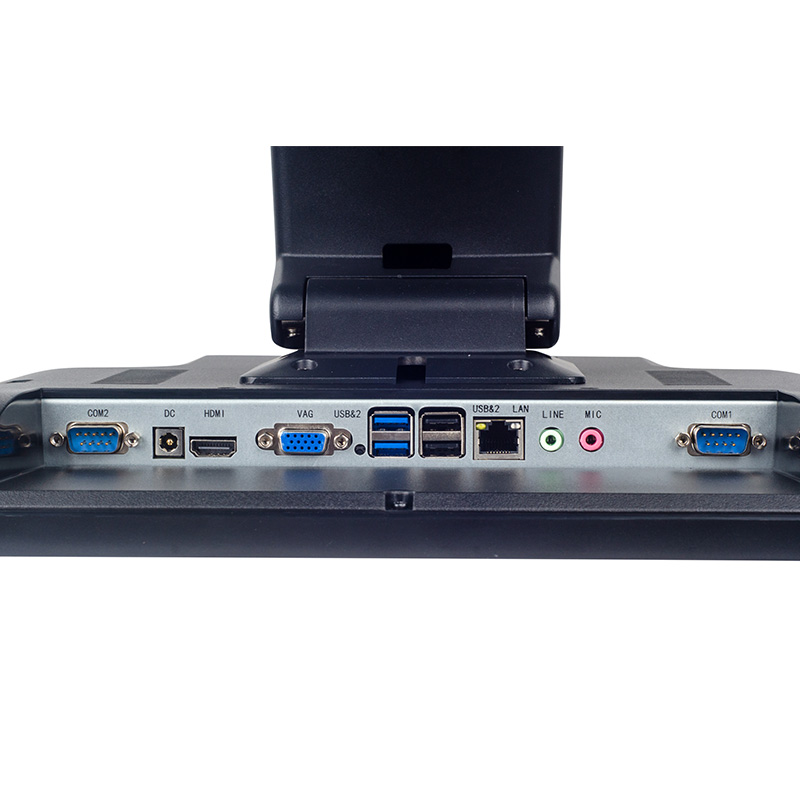

INTERFACE
USB	5*USB
LAN	1*RJ45
Serial	2*COM (RS232)
Display	1HDMI or 1VGA+1*HDMI
Audio	1Line Out+1Mic In or 1*Audio
Cash Drawer	1*RJ11 (Option on J4125)
Power DC-IN	Input AC 100~240V/50~60hz, Output DC 12V/5A
PHYSICAL&ENVIRONMENTAL
Operating Temperature	Operating 0°~50°
Operating Temperature	Storage-20°~60°
Cooling	Fanless/With CPU Fan
Dimensions	(W×H×D) 390x370x200 MM
Packing Dimensions	(W×H×D) 510x475x290 MM
Net Weight	5.34KG (Single Display)
Packing Weight	7.8KG
Color	Black
OPTIONS & PERIPHERALS
Additional Hard Disk	2.5 Inch Sata 3.0 SSD or 500GB, 1TB HDD
2nd Display	9.7/15 Inch (Touch on 2nd Display Option)
VFD	VFD, 20 Columns x 2 Lines (Option)
MSR	ISO 3 Tracks Reading (Option)
Wifi	IEEE 802.11 a/b/g/n/ac, 2.4Ghz (5.0Ghz Option)
Bluetooth	Bluetooth 4.0 Protocol (Option)
Speaker	28Ω1W Speaker (Option)
Wall Mount	VESA 7575mm/100100mm (Available for Single Display Only)
