KIOSK & KDS

ZAF270K-A

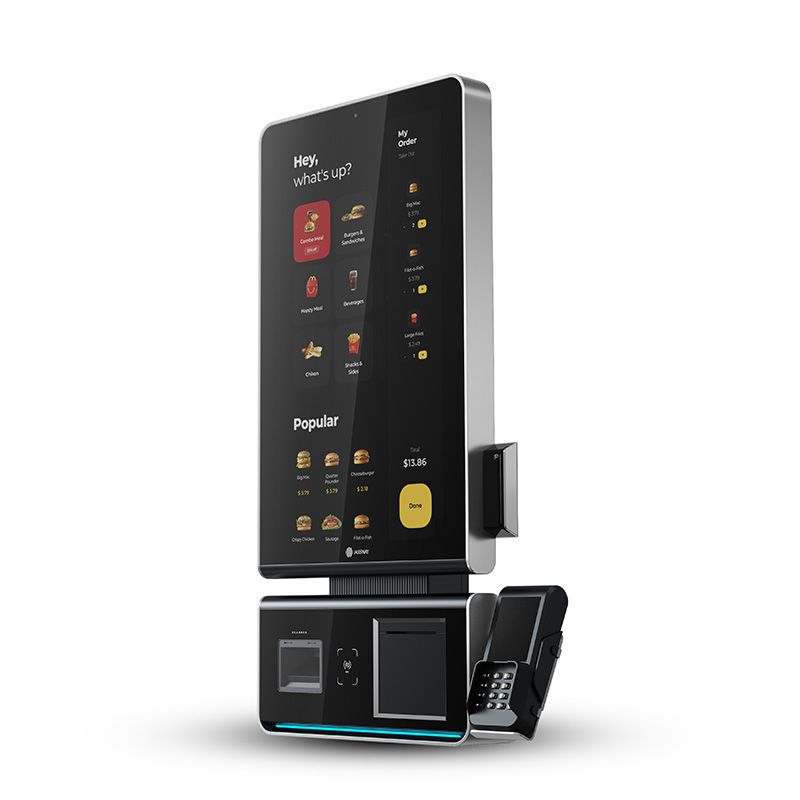

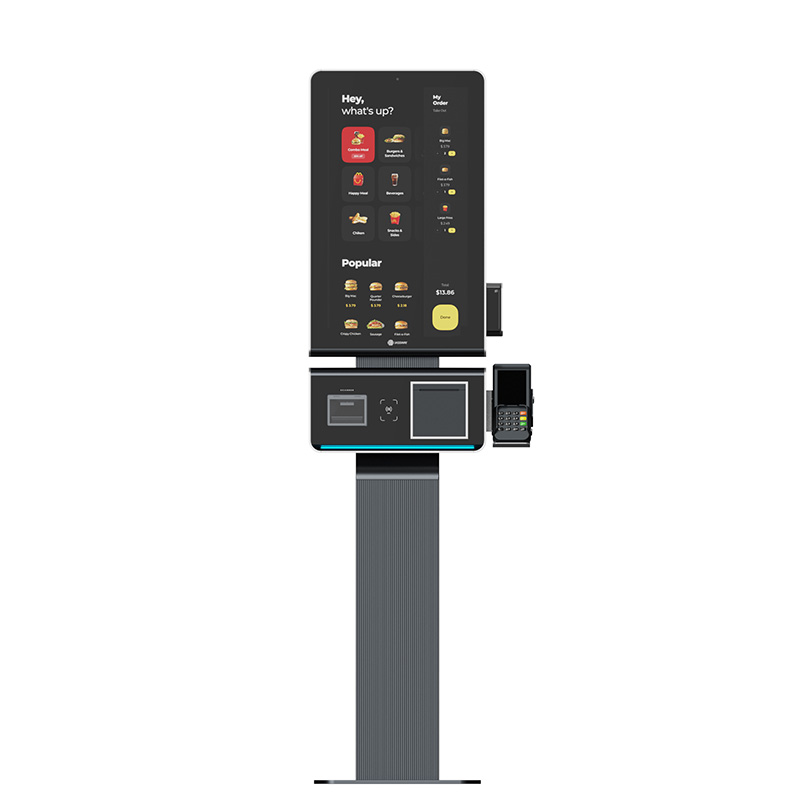

27inch Kiosk with printer, Scanner, Camera, NFC optional
Contact Us Now
Contact a Jassway Pos Expert Now !
About our industry and products,you may want to know more. We offer tailored solutions and are ready to provide up-to-date information and support.
Get to Know Us Now
Description
Reviews

Product Features

• 27-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.
• Windows and Android OS support.
• Flexible installation with floor stand, desktop or wall-mounted style.
• Word-leading scanning technology with user friendly subdued light.
• Quick receipt paper and easy replacement.
• Modular options with payment terminal, MSR, NFC, camera.
• Color customizable LED indicator for status check.

Specification

Model Number ZAF270K-A
SYSTEM
Processor RK3568 ARM Cortex-A55 Quad-Core, 2.0GHz
RK3399 ARM Cortex-A72 Dual-core+Cortex-A53 Quad-core
Memory 4GB DDR4
Storage 32GB EMMC
OS Android 11
DISPLAY
Type 27 Inch TFT LED Backlight LCD
Resolution 1920*1080
Aspect Ratio 16:9
Brightness 300cd/m2
Touchscreen Projective Capacitive Touch Screen
INTERFACE
Display 1*HDMI
Standard USB Port 2*Internal USB, 1*External USB
LAN 1*Gigabit Ethernet, RJ45
Audio 2*Internal 3W Speaker
Power DC-IN Input AC 100~240V/50~60hz
STANDARD COMPONENTS
Scanner 2D Barcode Scanner
Printer 3" Printer W/Auto Cutter, 200 mm/sec (Max.)
Status Indicator Color LED Indicator
PHYSICAL&ENVIRONMENTAL
Operating Temperature Operating 0~60°
Operating Temperature Storage -35°~75°
Cooling Fanless or with CPU Fan
Dimensions(W×H×D) Wall Mounting: 923.5*422*115(mm)
 Floor-standing: 1734*550*450(mm)
Net Weight Countertop Stand: 24.84kg
 Floor-standing: 45.42kg
Color Black/Silver
OPTIONS & PERIPHERALS
Wifi IEEE 802.11 a/b/g/n/ac, 2.4Ghz
Bluetooth Bluetooth 5.0
MSR Comply with ISO 7811, Support 1&2&3 Track (Option)
NFC MIFARE, FeliCa, IS0/IEC 14443A/B ISO/IEC 18092,ECMA 340 NFCIP-1 Peer-to-Peer (Option)
Camera 2 MP Wide Angle Camera (Option)
4G/LTE Communication Support Selected Bands & Countries With Full SIM Slot (Mini-pcl e Module) By Request
Payment Termimal Bracket Adjustable Bracket (Option)
