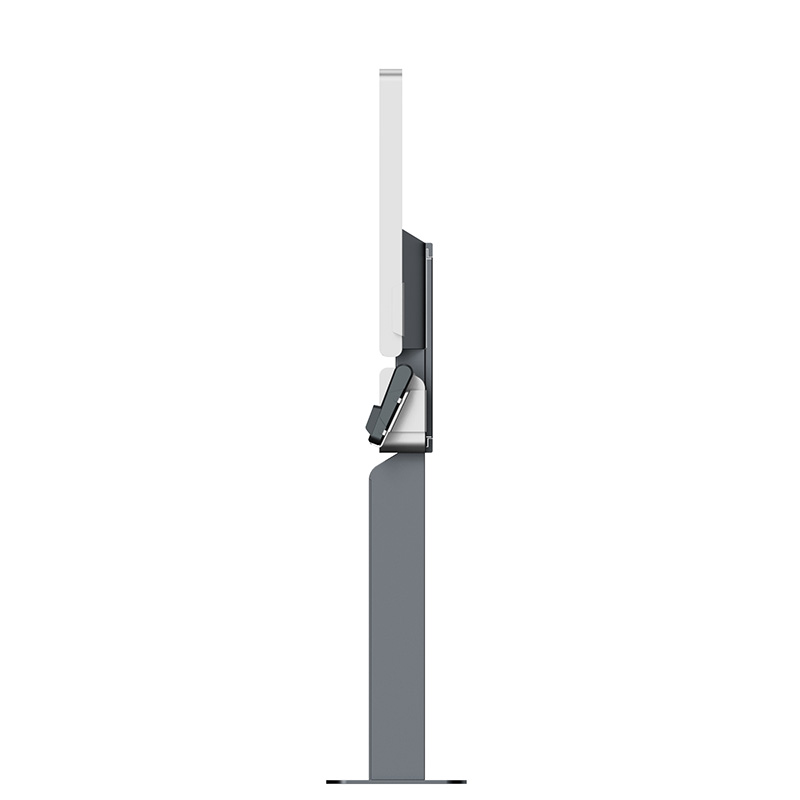

ZAF270K-W

27inch Kiosk with printer, Scanner, Camera, NFC optional

Get a Quote Now

Description

Reviews

Product Features

• 27-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.
• Windows and Android OS support.
• Flexible installation with floor stand, desktop or wall-mounted style.
• Word-leading scanning technology with user friendly subdued light.
• Quick receipt paper and easy replacement.
• Modular options with payment terminal, MSR, NFC, camera.
• Color customizable LED indicator for status check.

Specification

Model Number	ZAF270K-W
SYSTEM
Processor	Intel Alder Lake-N N95, N97, N100 Processor Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.60 GHz Intel Core i3/i5 4th, 5th, 6th, 8th, 10th, 11th, 12th GEN High Performance CPU
Memory	2GB, DDR3L or DDR4, up to 8/16/32GB
Storage	mSata or M.2 SSD, up to 512GB
OS	Windows 10/11
DISPLAY
Type	27 Inch TFT LED Backlight LCD
Resolution	1920*1080
Aspect Ratio	16:9
Brightness	300cd/m2
Touchscreen	Projective Capacitive Touch Screen
INTERFACE
Display	1HDMI, 1VGA
Standard USB Port	4Internal USB, 1External USB
LAN	1*Gigabit Ethernet, RJ45
Audio	2*Internal 3W Speaker
Power DC-IN	Input AC 100~240V/50~60hz
STANDARD COMPONENTS
Scanner	2D Barcode Scanner
Printer	3" Printer W/Auto Cutter, 200 mm/sec (Max.)
Status Indicator	Color LED Indicator
PHYSICAL&ENVIRONMENTAL
Operating Temperature	Operating 0~60°
Operating Temperature	Storage -35°~75°
Cooling	Fanless or with CPU Fan
Dimensions(W×H×D)	Wall Mounting: 923.5422115(mm) Floor-standing: 1734550450(mm)
Net Weight	Countertop Stand: 24.84kg Floor-standing: 45.42kg
Color	Black/Silver
OPTIONS & PERIPHERALS
Wifi	Mini PCIe for Wireless LAN (Option)
Bluetooth	Bluetooth 4.0(Option)
MSR	Comply with ISO 7811, Support 1&2&3 Track (Option)
NFC	MIFARE, FeliCa, IS0/IEC 14443A/B ISO/IEC 18092,ECMA 340 NFCIP-1 Peer-to-Peer (Option)
Camera	2 MP Wide Angle Camera (Option)
4G/LTE Communication	Support Selected Bands & Countries With Full SIM Slot (Mini-pcl e Module) By Request
Payment Termimal Bracket	Adjustable Bracket (Option)
